產品特性

◆  密封性：在葉片與連接件間有密封的卡槽，百葉片之間有密封的卡環及密封膠條，保證了百葉在完全關閉時能隔絕外界噪音、塵土、風雨。

◆  由隔熱鋁型材構成，保證了開啟時的***佳通風效果和關閉時的隔熱效果，廣泛應用于各種建筑的排煙通風窗。

◆  通風與遮陽兼顧：可調節葉片開啟角度，既能保證室內的自然通風，又能同時阻擋有害紫外線的照射。

◆  抗風性能：獨特的結構設計，優質的選材，使得產品可抵抗130km/h的風速（相當于12級臺風）。

◆  消防自動排煙、通風結合：與消防系統連接，在緊急狀況時，可自動開啟達到排煙通風的效果。完全開啟后***大的排煙空間（可開啟90度），使***短時間內能迅速排煙，保證人身安全。插圖

Features

◆  Air tightness: there is card slot between blade and connecting parts and sealed snap ring and sealant in the blades, keep far away from outer noise, dirty, wind &rain.

◆  The louver is made high quality aluminum alloy, which ensure the best ventilation effect when opening and ensure the heat insulation effect when closing. Be widely used as smoke exhaust ventilation windows of various buildings.

◆  Ventilation and sunshade: it can adjust the opening angle of blade not only ensure ventilation system working but also escape the harm-ultraviolet radiation.

◆  Wind resistance: special design, good material, make the product can resist 130km/h wind speed (equal to grade 12typhoons).

◆  Smoke ventilation: connecting with fire protection system, in emergency, smoke systems can work automatically and it will keep Max opening space to exhaust smoke in short time.

鋁百葉的技術特點

◆  平板百葉葉片的長度可達兩米長，一般不超過兩米為佳。

◆  有活動和固定兩種類型：活動可分手動和電動兩種。

◆  可水平、垂直或變間距安裝。

◆  顏色可由客戶選定。

◆  0-105°的角度活動開啟設計，可滿足采光、遮陽、通風等多種需求。

◆  百葉的風向和風力的調節作用，可享受柔風的感覺。

◆  百葉窗開啟系統配置電動開窗機，能接收消防信號，實現消防聯動。



Technical Features of Aluminum Louvers

◆  The blade length of panel louvre can reach to 2m, generally not more than two meters.

◆  Two types: movable and fixed, movable shutters can be divided into manual and electric.

◆  Installation: vertical, crosswise, custom spacing.

◆  The color can be selected by customer.

◆  0-105° movement design, can meet different request of building lighting, sunshade &ventilation.

◆  Adjustable wind direction and wind-force.

◆  The louvre open system including electric actuators, can receive fire signal and realize the fire linkage.

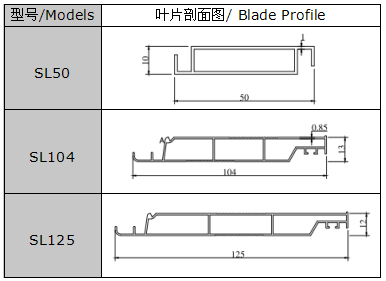

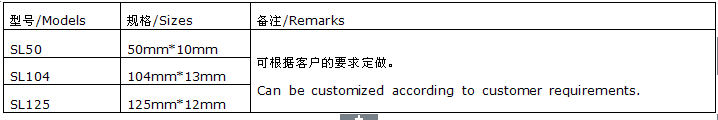

技術資料
